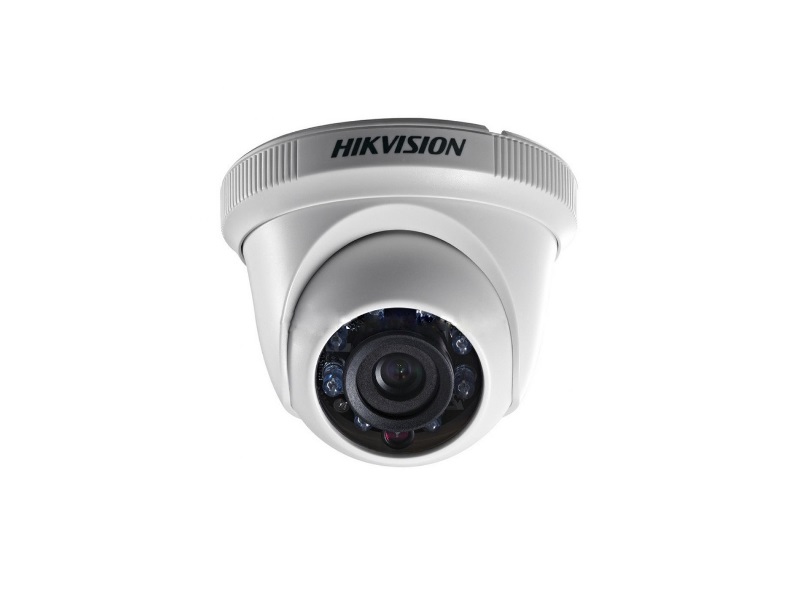

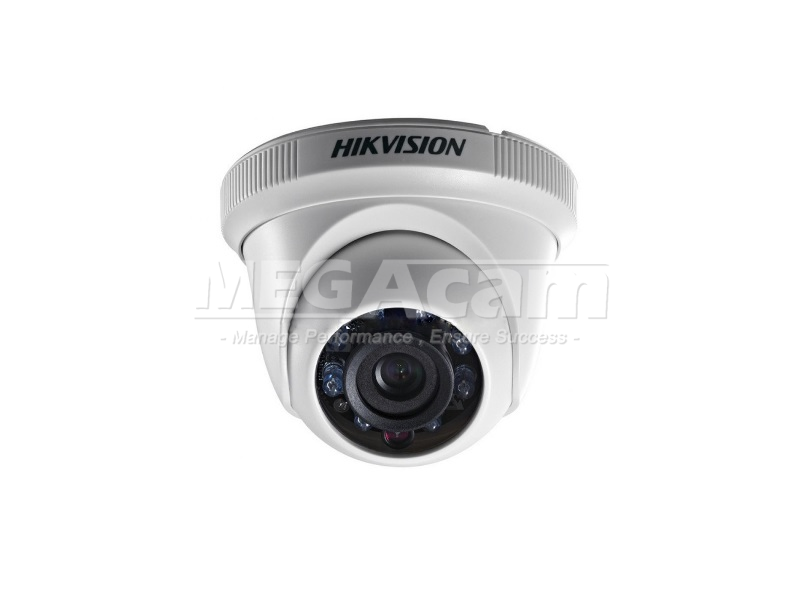

DS-2CE55A2P-IRP
MCDS-2CE55A2P-IRP

DS-2CE55A2P-IRP

  • 700 TVL Horizontal Resolutionr
  • True Day/Night mode
  • 2.8/3.6/6 mm Fixed Lens, 0.1 lux /F1.2
  • 20m IR effective distance
  • Wide Operating Temperature Range:-40°C to 60°C(-40ºF to +140ºF)
Product Description
  DS-2CE55A2P-IRP


Specifications

Camera
Item Description
Image Sensor 1/3” DIS
Signal System PAL/NTSC
Eff ective Pixels 976 (H) × 496 (V)
Min. Illumination 0.1 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter speed PAL: 1/50 s to 1/100,000 s
NTSC: 1/60 s to 1/100,000 s
Lens 3.6 mm (2.8mm,6 mm optional)
Angle of view: 68.4° (3.6 mm)
Lens Mount M12
Angle Adjustment Pan: 0 - 360°; Tilt: 0 - 75°; Rotation: 0 - 360°
Day & Night IR cut fi lter with auto switch
Horizontal Resolution 700 TVL
Synchronization Internal synchronization
Video Output 1Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 62 dB


General
Item Description
Working Temperature / Humidity -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 V DC
Power Consumption Max. 1.8W
(Max. 4W with IR cut filter on)
IR Range 20 meters
Dimensions Φ89.5 × 69.8 mm(Φ3.52” × 2.75”)
Weight 200 g (0.44 lbs)
