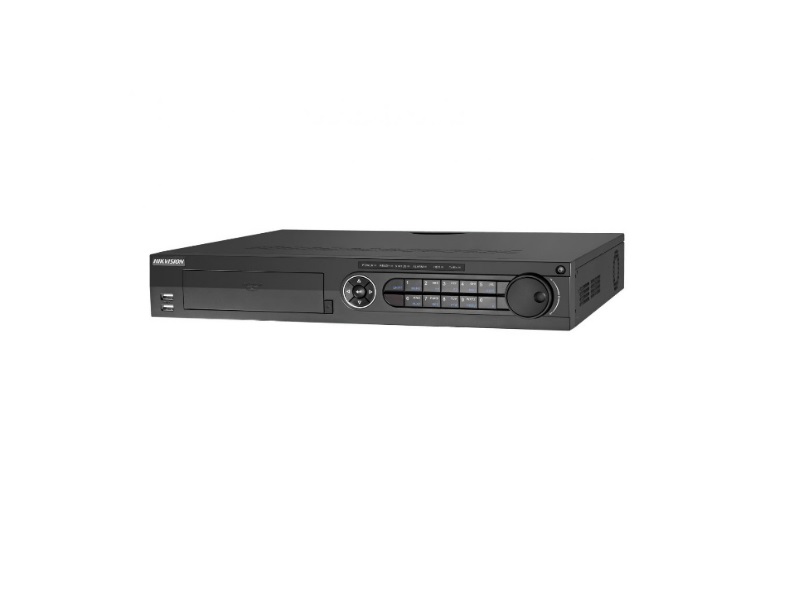

DS-7308HUHI-K4
MCDS-7308HUHI-K4

DS-7308HUHI-K4

  • Self-adaptive HDTVI, AHD, HDCVI and analog cameras
  • H.265+/H.265/H.264+/H.264 encoding for the main stream
  • 8MP/ 5MP/ 4MP HDTVI video input and live view
  • Up to 6/10/18-ch 8 MP IP cameras input
  • Four SATA interfaces (up to 8 TB capacity per HDD)
  • Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K
Product Description
  DS-7308HUHI-K4


Specification

Video / Audio Input
Item Description
Video compression H.265+/ H.265/ H.264+/ H.264
Analog and HD-TVI video input 8-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
AHD input 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
HDCVI input 5 MP, 4 MP, 720p25, 720p30, 1080p25, 1080p30
CVBS input Support
IP video input 2-ch (up to 10-ch)
Up to 8 MP resolution
Supports H.265+/ H.265/ H.264+/ H.264 IP cameras
Network bandwidth 200 Mbps
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)


Video / Audio Output
Item Description
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1 / VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2 output 1-ch, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
Ecoding resolution 8 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF
Frame rate Main stream: 8 MP @ 8fps/ 5 MP @ 12fps; 4 MP @ 15fps; 3 MP @ 18fps; 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF @ 25fps (P)/ 30fps (N)
Sub-stream: WD1/ 4CIF/ CIF @ 25fps (P)/ 30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 2-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 8-ch


Network Management
Item Description
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP


Hard Disk
Item Description
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 8TB capacity for each disk


External Interface
Item Description
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Network interface 2, RJ45 10M/ 100M/ 1000M self-adaptive Ethernet interface
USB interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Serial interface RS-232, RS-485 (full - duplex), Keyboard
Alarm in/out 16 / 4


General
Item Description
Power supply 100 to 240 VAC
Consumption (without hard disks) ≤ 45 W
Working temperature -10 ºC to + 55 ºC (+14 ºF to + 131 ºF)
Working humidity 10% to 90%
Dimensions (W × D × H) 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weight (without hard disks) ≤ 5 kg (11.0 lb)
