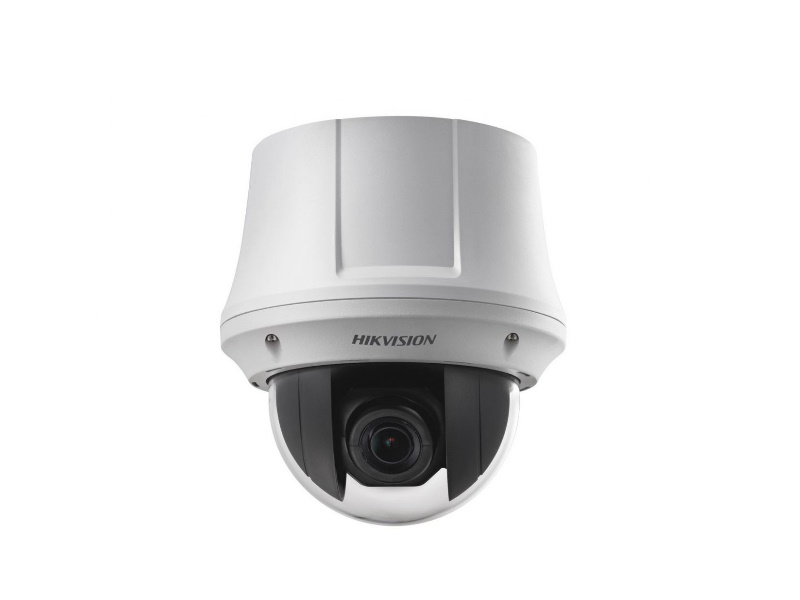

DS-2DE4220-AE3
MCDS-2DE4220-AE3

DS-2DE4220-AE3

2MP Network PTZ 4 Dome Camera
  • 1080P Full HD real-time resolution
  • 2 Megaxipel High Resolution
  • 20x Optical Zoom, 16x Digital Zoom
  • True Day/Night, DWDR, 3D DNR
  • Privacy Mask, Alarm Input/Output
  • 3D Intelligent Positioning
  • Compact Design
Product Description
  DS-2DE4220-AE3


Specification

Camera

Item Description
Image Sensor 1/2.8-inches Progressive Scan CMOS
Max. Image Resolution 1920(H)x1080(v)
Min.illumination Color: 0.05Lux@F1.6, AGC ON; B/W: 0.01Lux@ (f/1.6, AGC ON),(50 IRE)
White balance Auto / Manual /ATW/Indoor /Outdoor/ Daylight lamp/Sodium lamp
AGC Auto / manual
S/N ratio ≥ 52dB
Digital noise Reduction 3D DNR,BLC, digital WDR
Backlight compensation HLC/BLC
Defog Supported
Shutter Speed 1/1 to 1/10,000s
Day/Night IR cut filter
Digital Zoom 16x
Focus Mode Auto/ Semi automatic / Manual
Privacy Mask 2 Privacy mask programmable


Lens

Item Description
Focal length 4.7 ~ 94mm, 20x
Zoom speed Approx 3s(Optical Wide-Tele)
Angle of view 58.3 ~3.2 degree (Wide-Tele)
Min. working distance 10 ~1000mm(Wide-Tele)
Aperture range F1.6 ~ F3.5


Pan and Tilt

Item Description
Pan / Tilt range Pan: 360° endless;Tilt: +5° ~90°(Auto Flip)
Pan / Tilt speed Pan Manual Speed: 0.1° ~160°/s, Pan Preset Speed: 160°/s
Tilt Manual Speed: 0.1° ~120°/s, Tilt Preset Speed: 120°/s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
Patrol 8 patrols, up to 32 presets per patrol
Park action Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Power-off memory Supported
PTZ position display On/Off
Preset freezing Supported


Input/Output

Item Description
Audio Input/Output 1 mic/line in, 2 to 2.4V(p-p); output impedance: 1KΩ 1 output, line level, impedance: 600Ω
Alarm Input/Output 1 inpt(0 to 5VDC) / 1 relay output, alarm response action configurable
Alarm Triggers Intrusion detection, line crossing detection motion detection, audio exception detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Alarm Actions Preset / patrol / pattern / recording / relay output / upload center / upload FTP / e-mail linkage


Network

Item Description
Ethernet 10Based-T / 100Based-TX, RJ45 connector
Frame Rate 30fps (1920x1080), 30fps(1280x720)
Image Compression H.264 / MJPEG
SVC Supported
ROI Encoding Support 2 areas with adjustable levels
Audio Compression G.711u / G.711a / G.726 / MP2L2
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live Views 20 users
Streams Dual Streams
SD Memory Card Built-in microSD card slot up to 128GB, support edge recording
User / Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Three level user authentication, password authorization, HTTPS and SSH certificate, IEEE802.1X, basic and digest authentication, watermark, IP address filtering, log-in lockout


Integration

Item Description
Application Programming Open-ended API, support ONVIF, PSIA, ISAPI, and CGI
Web Browser IE7+, Firefox 5.0+, Safari 5.02+


General

Item Description
Power -AE: 24 VAC/POEH (802.3at), maximum 18 W; -AE3: 24 VAC/PoE (802.3af), maximum 12 W
Working Temperature -AE: -30º C to 65º C (-22º F to 149º F); -AE3: -10º C to 50º C (14º F to 122º F)
Humidity 90% or less
Protection level IP66 (-AE), IK8 (-AE and AE3)
Dimensions Φ179.4 × 239.5 mm (Φ7.06" × 9.43") (outdoor)
Φ165 × 179.5 mm (Φ6.50" × 7.07") (ceiling)
Φ165 × 168 mm (Φ6.50" × 6.61") (in-ceiling)
Weight (approx.) Approximately 2 Kg (4.41 Ibx)
